Description

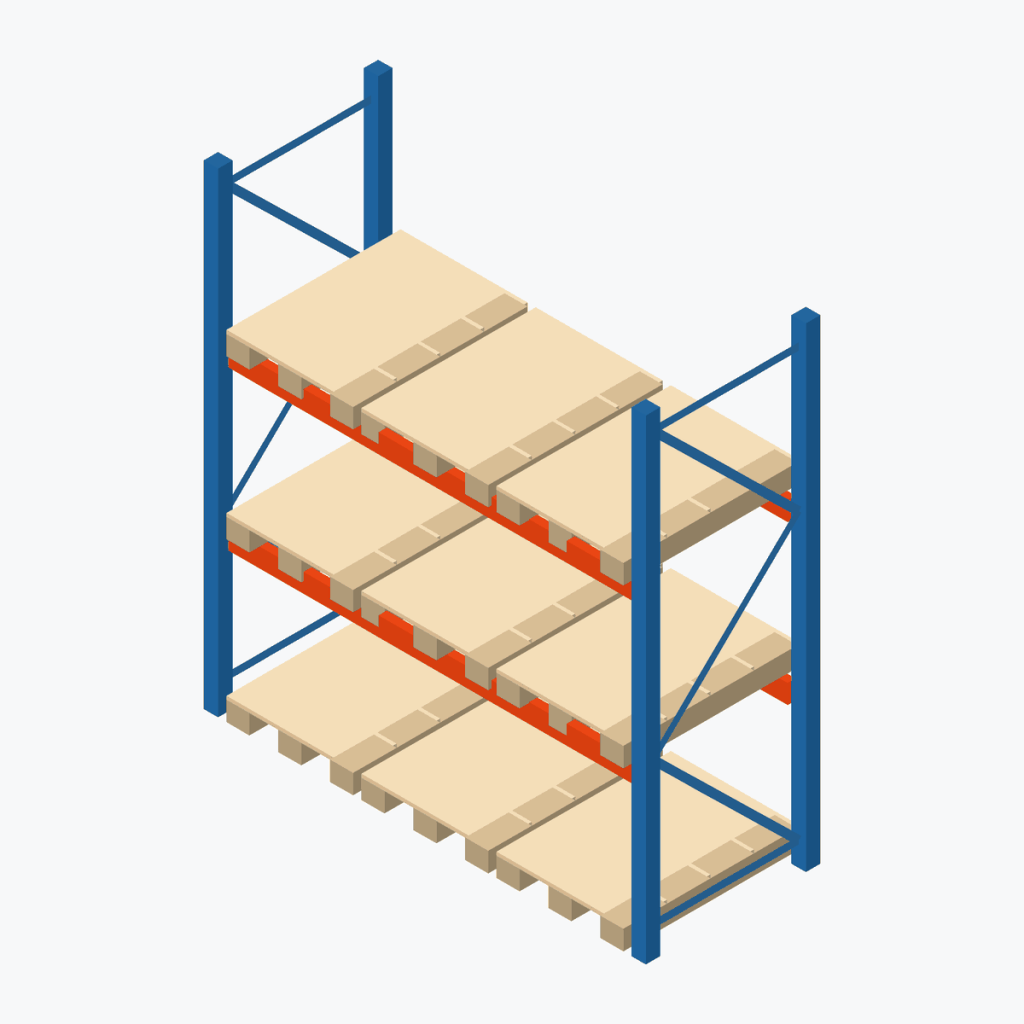

New pallet racking from Stow, with capacity for eight rack rows and a total of 720 pallet positions. The frames are 3,000 mm high and 1,100 mm deep, whilst the beams are 2,700 mm long. This means that each bay can accommodate three Euro pallets side by side, spread across three levels including the ground level.
Technical data
- Item number: PR-STOW-30-0720
- Condition: new
- Manufacturer: Stow
- Pallet positions: 720
- Height: 3,000 mm
- Depth: 1,100 mm
- Beam length: 2,700 mm
- Bay load: 9,000 kg
- Shelf load: 3,000 kg
- Frame finish: sky blue painted, RAL 5015
- Beam finish: pure orange painted, RAL 2004
- Category: Pallet racking
Scope of delivery
- 88 frames, 3,000 × 1,100 mm, sky blue painted, RAL 5015
- 320 beams, 2,700 mm, pure orange painted, RAL 2004
- Locking pins
How the pallet positions are configured
The 88 frames form eight rack rows, each with 10 bays. The 320 beams form 160 pairs of beams, creating 2 levels above floor level. 80 bays × 3 levels × 3 pallets per level give a total of 720 pallet positions. Other configurations are possible: we would be happy to discuss quantities above or below these figures with you.
Price, collection and accessories
The price is quoted gross, including 19% VAT, ex-warehouse in Kaarst. Customers collecting the goods in person are welcome; loading is free of charge. We organise nationwide delivery — transport costs depend on the quantity and destination and will be quoted on enquiry. Accessories are available at an additional cost: floor anchors, rack protection, barrier rails, upright protectors and wire mesh decking.
Do you need a different height, different beam lengths or a configuration not listed here? Send us an enquiry about your required quantity — we’ll check what we can put together from our stock.

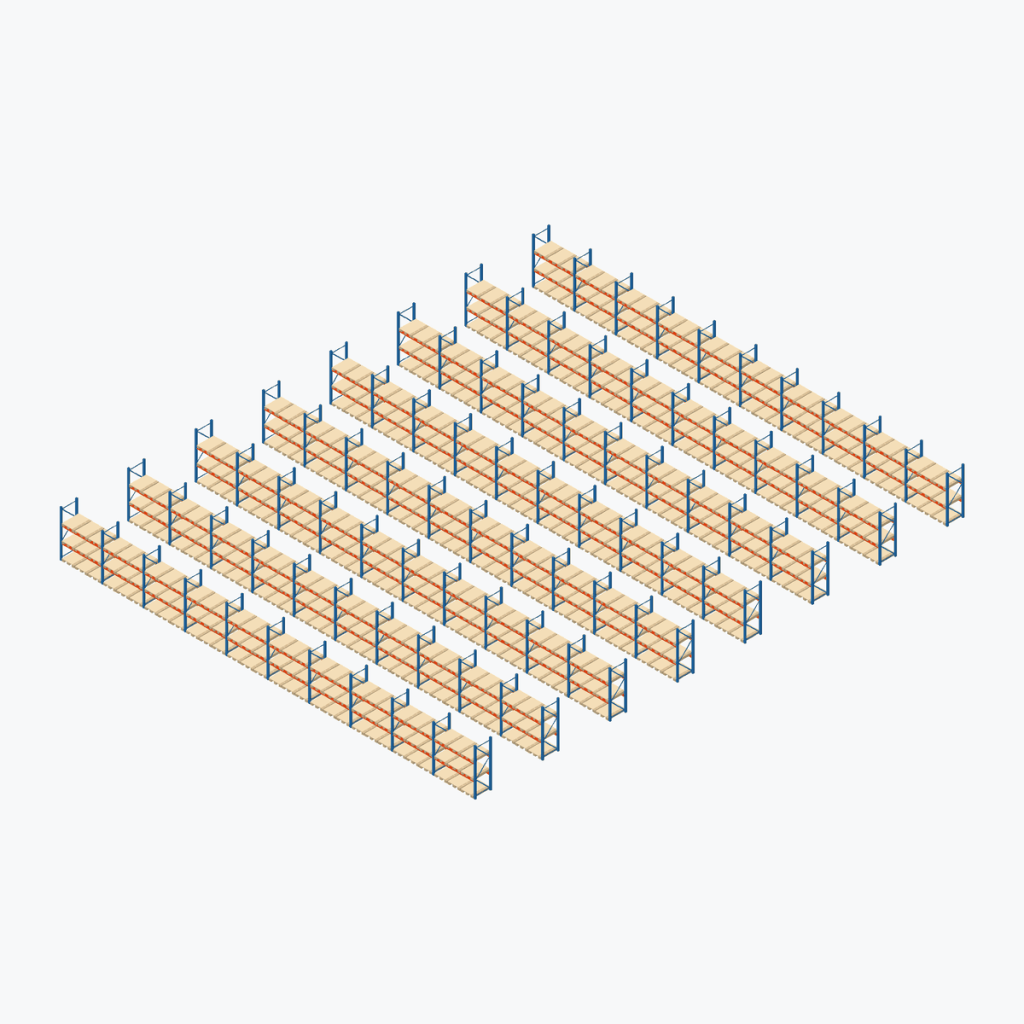

Note on the images: Symbolic image (schematic drawing) – the goods may differ.
