Description
Used pallet racking from Stow, sufficient for 48 rack rows with a total of 5,760 pallet positions. The frames are 5,000 mm high and 1,100 mm deep, whilst the beams are 2,700 mm long. This means that each bay can accommodate three Euro pallets side by side, spread across four levels including the floor level.
Technical data
- Item number: PR-STOW-50-5760
- Condition: used
- Manufacturer: Stow
- Pallet positions: 5,760
- Height: 5,000 mm
- Depth: 1,100 mm
- Beam length: 2,700 mm
- Bay load: 12,000 kg
- Shelf load: 3,000 kg
- Frame finish: sky blue painted, RAL 5015
- Beam finish: pure orange painted, RAL 2004
- Category: Pallet racking
Scope of delivery
- 528 frames, 5,000 × 1,100 mm, sky blue painted, RAL 5015
- 2,880 beams, 2,700 mm, pure orange painted, RAL 2004
- Locking pins
How the pallet positions are configured
The 528 frames make up 48 rack rows, each with 10 bays. The 2,880 beams form 1,440 pairs of beams, creating 3 levels above floor level. 480 bays × 4 levels × 3 pallets per level give a total of 5,760 pallet positions. Other configurations are possible: we would be happy to discuss quantities above or below this with you.
Condition
Used goods from dismantled structures. Frames and beams show the usual signs of wear and tear from warehouse use, such as scratches and scuff marks on the support surfaces. If you have any questions about the condition of a specific item, please give us a call — we’ll go through the stock with you.
Price, collection and accessories
The price is quoted gross, including 19% VAT, ex-warehouse in Kaarst. Customers collecting the goods themselves are welcome; loading is free of charge. We organise nationwide delivery — transport costs depend on the quantity and destination and will be quoted on enquiry. Accessories are available at an additional cost: floor anchors, rack protection, barrier rails, upright protectors and wire mesh decking.
Do you need a different height, different beam lengths or a configuration not listed here? Send us an enquiry about your required quantity — we’ll check what we can put together from our stock.

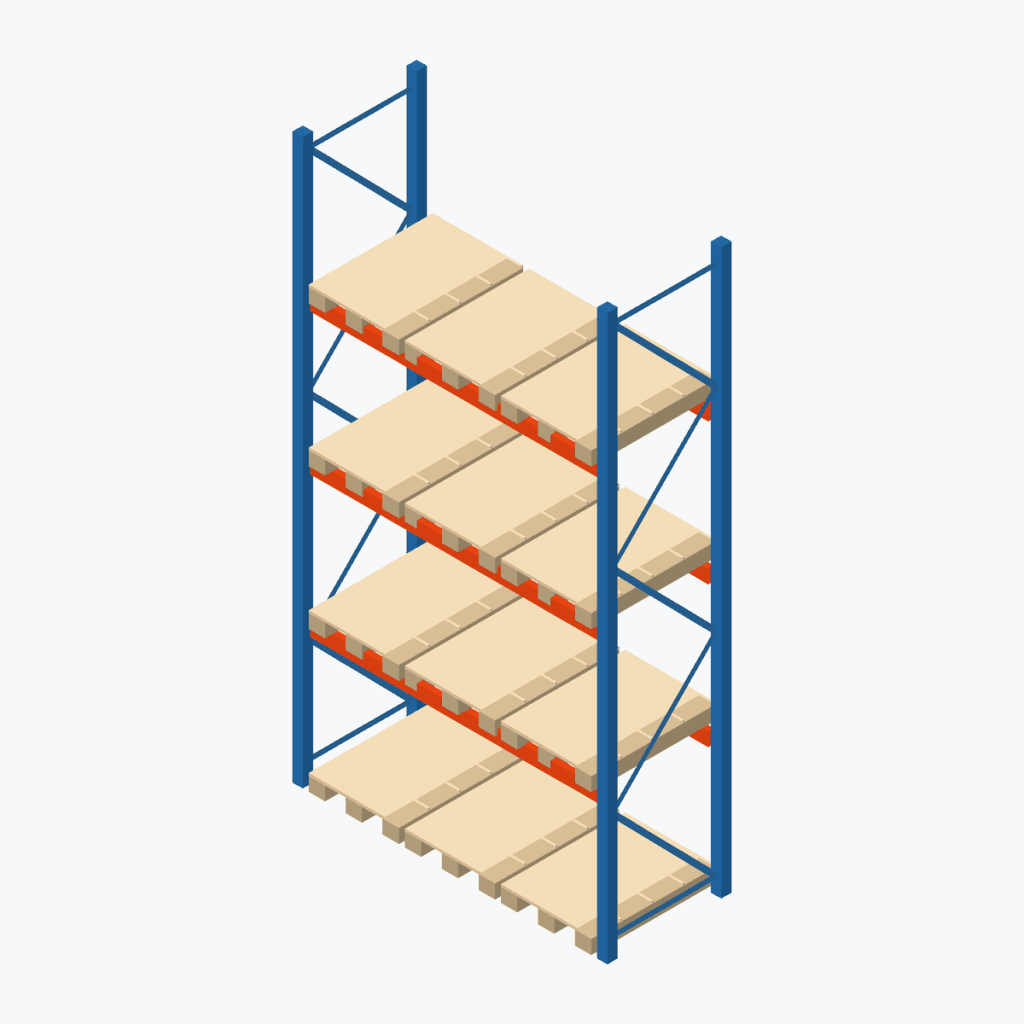

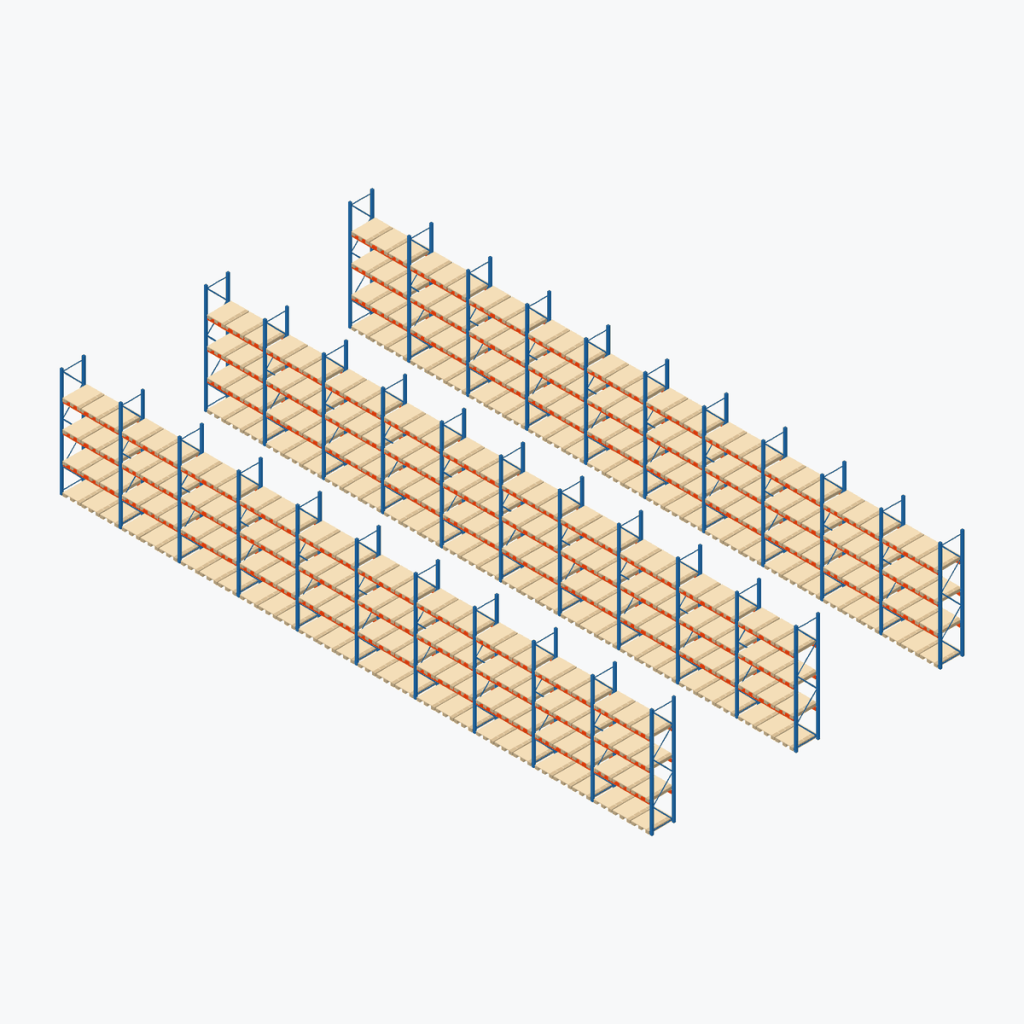

Note on the images: Symbolic image (schematic drawing) – the goods may differ.
