Description
Jungheinrich Pallet Racking MPB | 90 Pallet Positions | Height 3,000 mm | Used

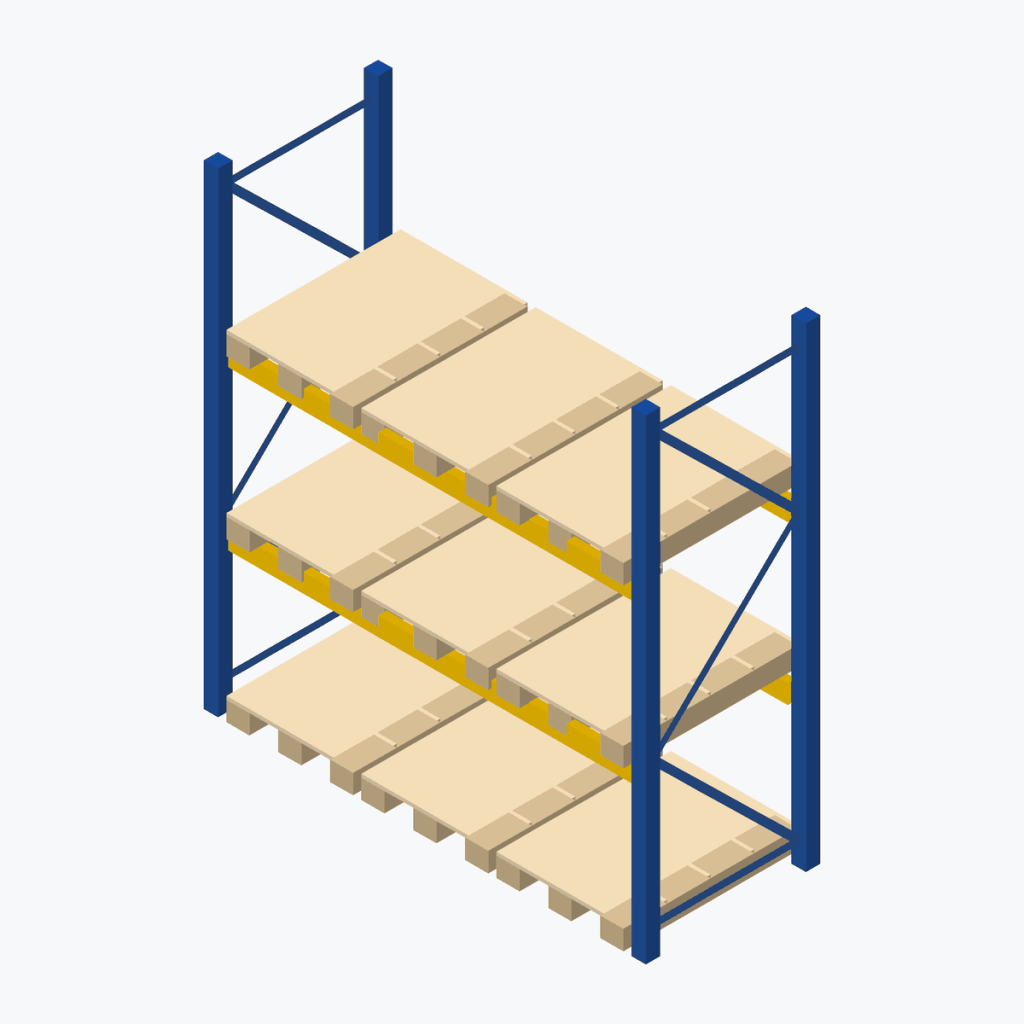

Used pallet racking by Jungheinrich, enough for a single run with a total of 90 pallet positions. The frames are 3,000 mm high and 1,100 mm deep, the beams 2,700 mm long. Each bay therefore holds three Euro pallets side by side across three levels including the floor level.
Technical data
- Item number: PR-JUNG-30-0090-2
- Condition: used
- Manufacturer: Jungheinrich
- Pallet positions: 90
- Height: 3,000 mm
- Depth: 1,100 mm
- Beam length: 2,700 mm
- Beam load: 2,400 kg under evenly distributed load
- Frame finish: blue painted
- Beam finish: yellow painted
- Category: Pallet Racking
Scope of delivery

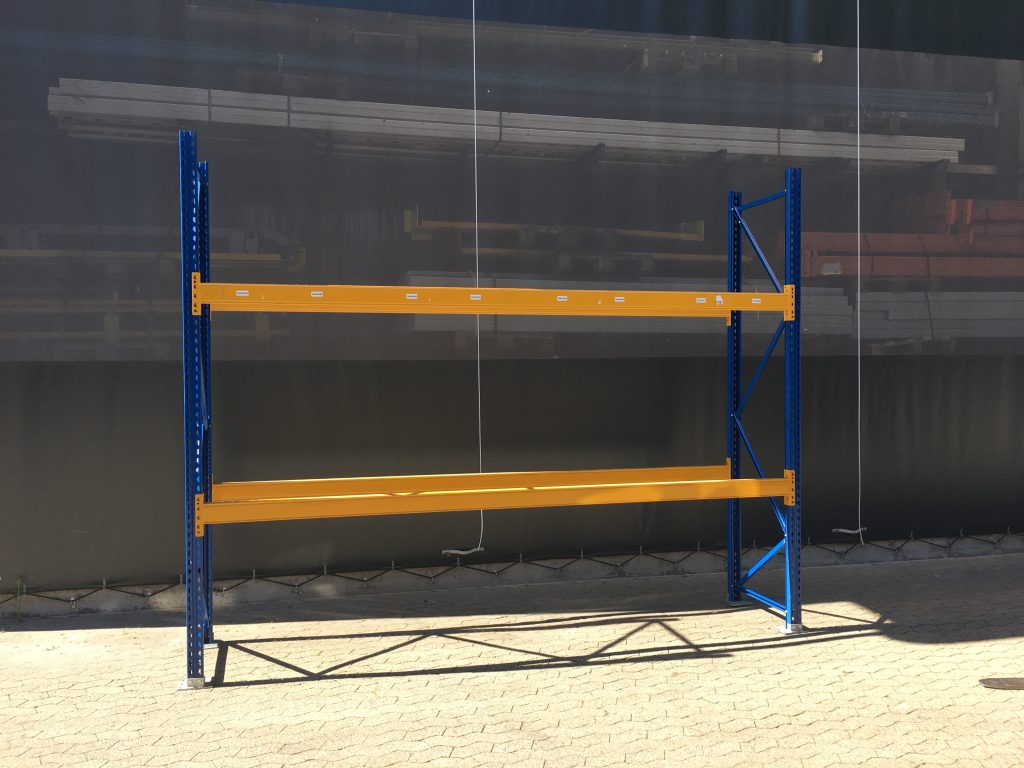

- 11 frames, 3,000 × 1,100 mm, blue painted

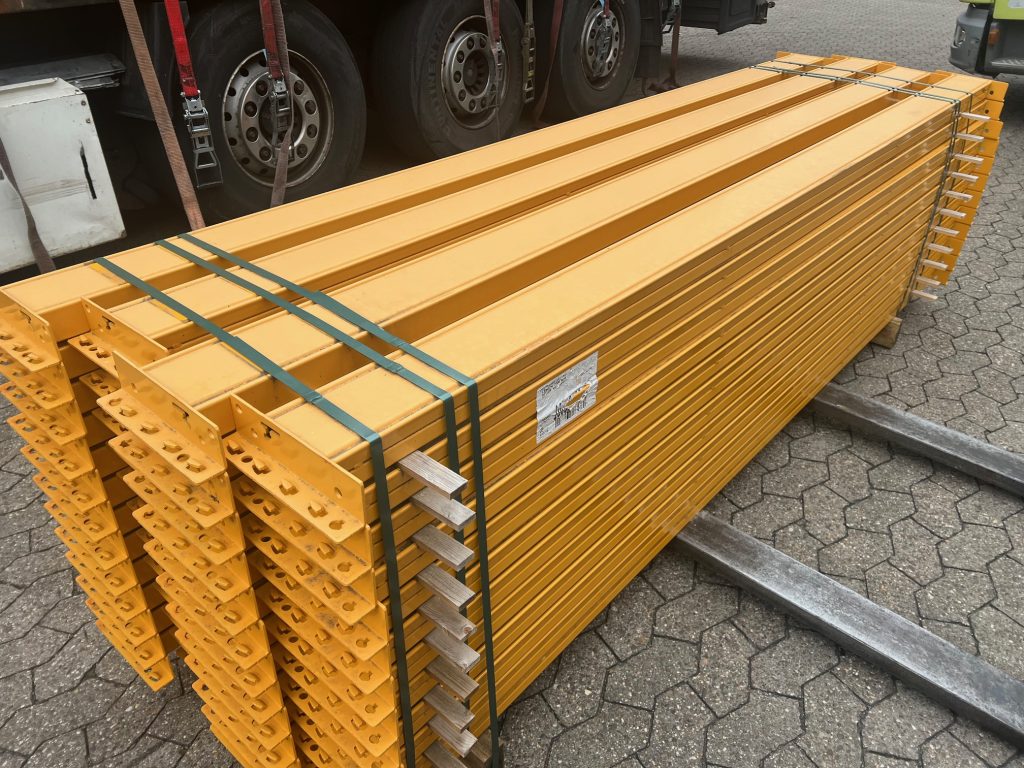

- 40 beams, 2,700 mm, yellow painted
- Locking pins
How the pallet positions add up

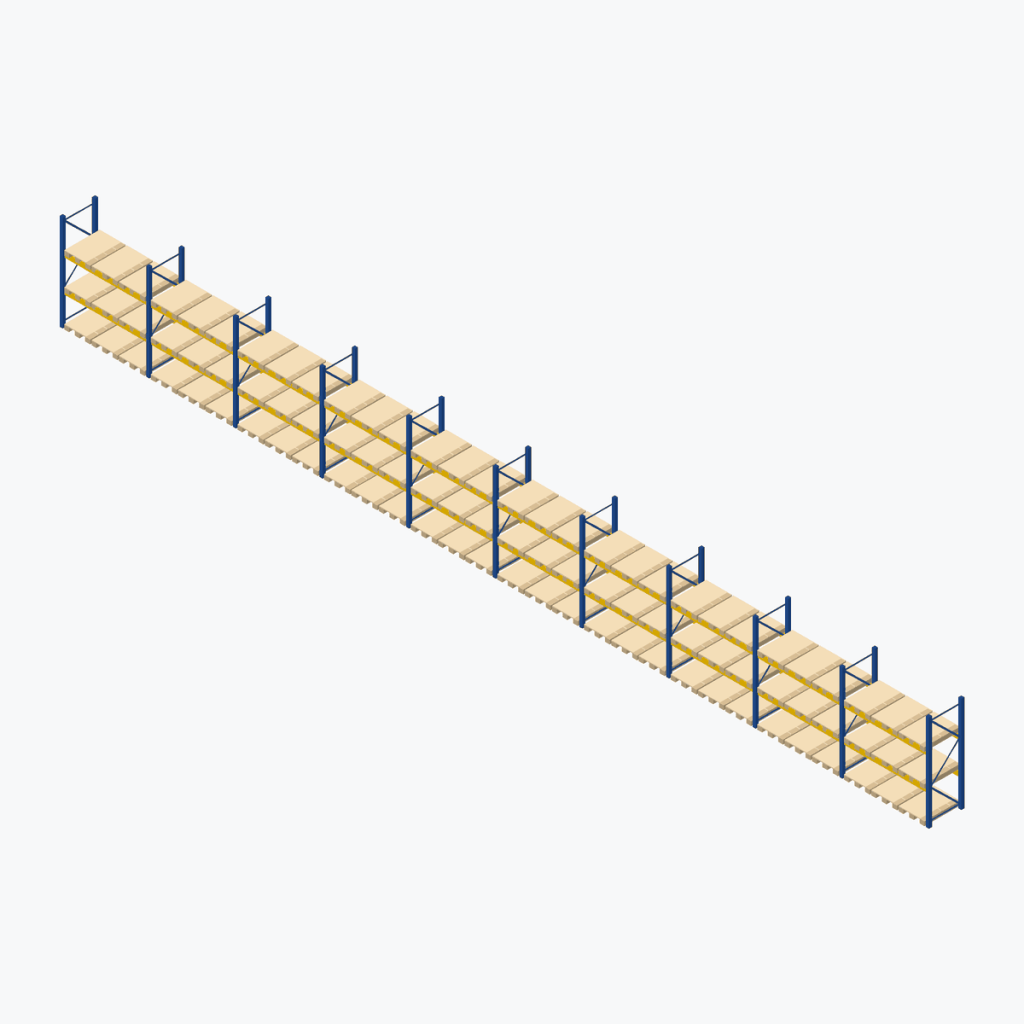

The 11 frames form a single run of 10 bays. The 40 beams make up 20 beam pairs and therefore 2 levels above the floor level. 10 bays × 3 levels × 3 pallets per level give the 90 pallet positions. Other configurations are possible: tell us the quantity you need and we will put it together.
Condition

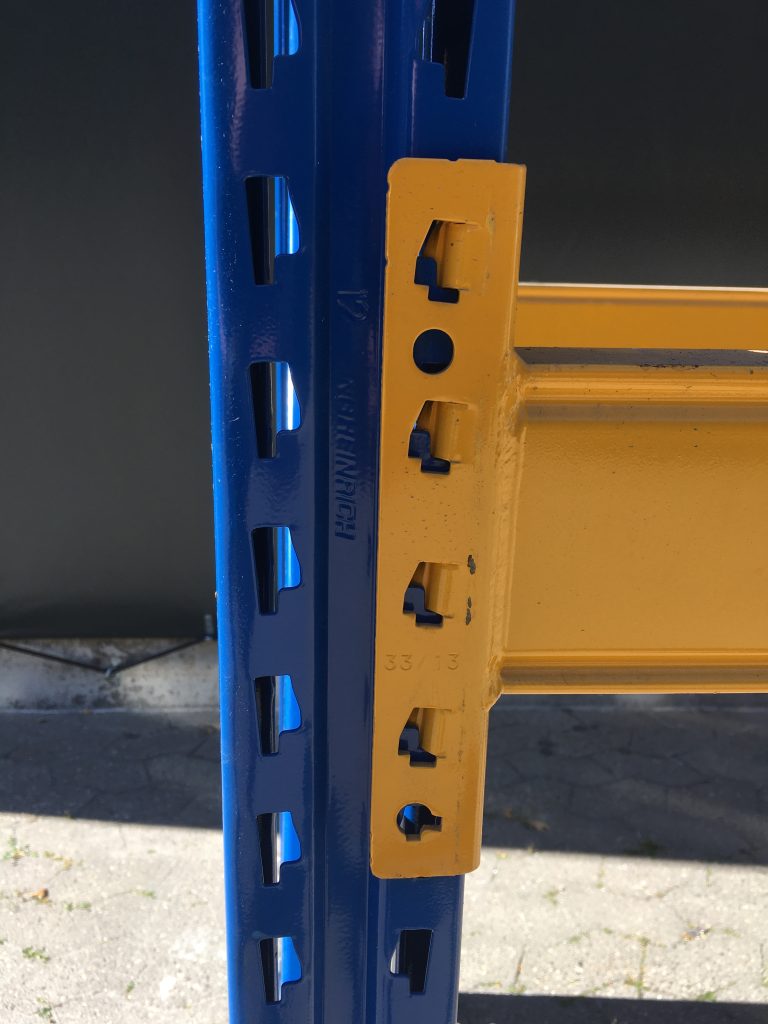

Used goods from dismantled installations. The frames come pre-assembled. Frames and beams show the usual signs of warehouse use, such as scratches and wear on the bearing surfaces. If you have questions about the condition of a particular item, give us a call and we will go through the material with you.
Price, collection and accessories
The price is gross, including 19 % German VAT, ex works Kaarst. You are welcome to collect the goods yourself; loading is free of charge. We arrange transport throughout Germany — freight costs depend on quantity and destination and we will quote them on request. Accessories are available at extra cost: floor anchors, rack protection, guard rails, upright protectors and wire mesh decks.
Need a different height, different beam lengths or a layout not shown here? Tell us the quantity you need — we will check what we can put together from our stock.
