Description
BITO Pallet Racking PRO | 270 Pallet Positions | Height 4,500 mm | Used

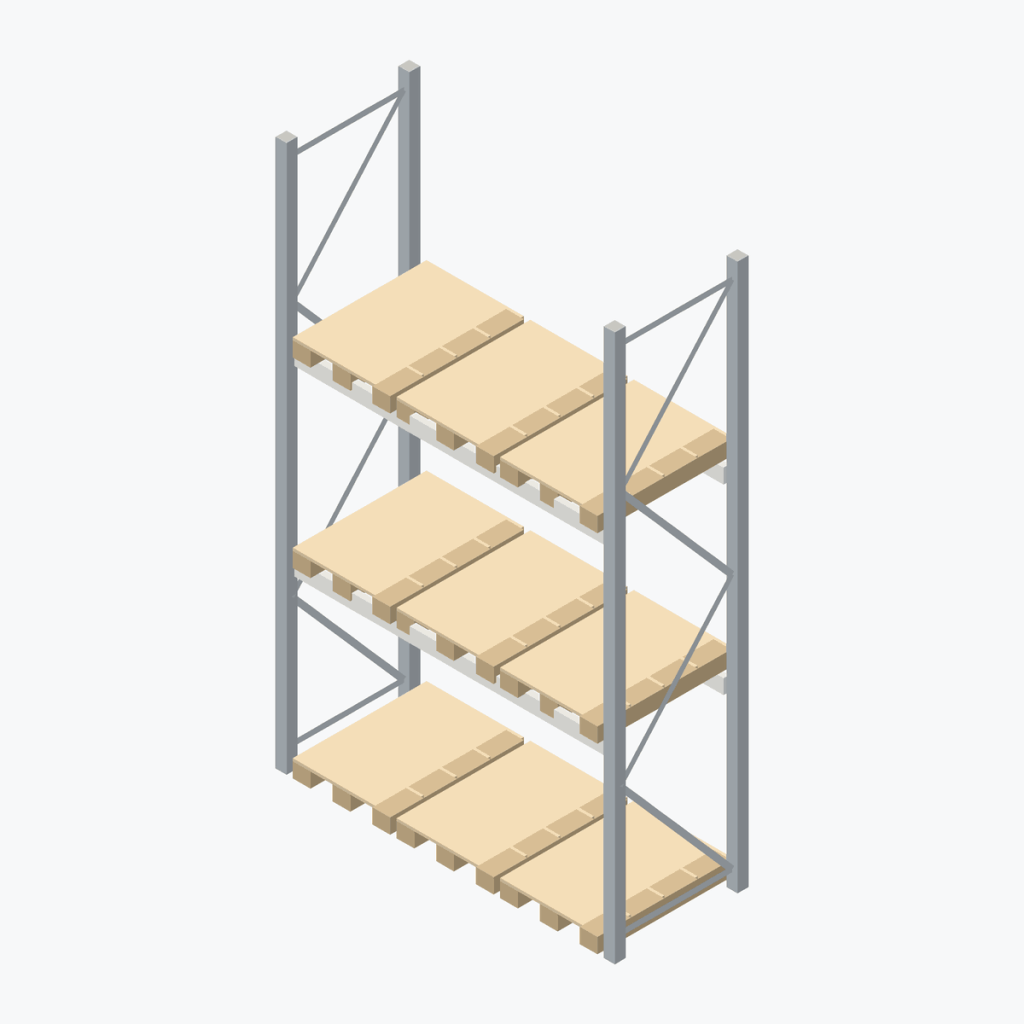

Used pallet racking by BITO, enough for three runs with a total of 270 pallet positions. The frames are 4,500 mm high and 1,100 mm deep, the beams 2,700 mm long. Each bay therefore holds three Euro pallets side by side across three levels including the floor level.
Technical data
- Item number: PR-BITO-45-0270
- Condition: used
- Manufacturer: BITO
- Pallet positions: 270
- Height: 4,500 mm
- Depth: 1,100 mm
- Beam length: 2,700 mm
- Bay load: 9,000 kg
- Beam load: 2,400 kg under evenly distributed load
- Frame finish: galvanised
- Beam finish: white painted
- Category: Pallet Racking
Scope of delivery
- 33 frames, 4,500 × 1,100 mm, galvanised
- 120 beams, 2,700 mm, white painted
- Locking pins
How the pallet positions add up

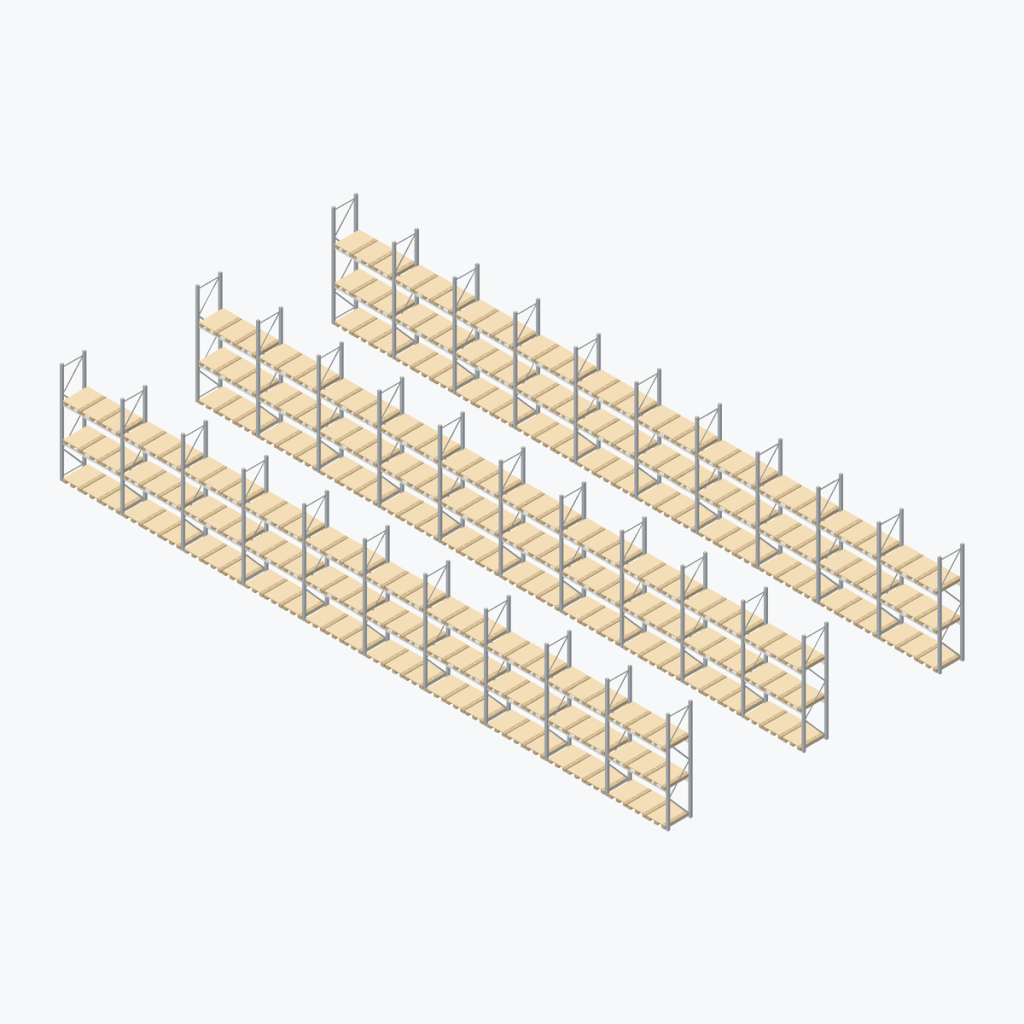

The 33 frames form three runs of 10 bays each. The 120 beams make up 60 beam pairs and therefore 2 levels above the floor level. 30 bays × 3 levels × 3 pallets per level give the 270 pallet positions. Other configurations are possible: tell us the quantity you need and we will put it together.
Condition
Used goods from dismantled installations. Frames and beams show the usual signs of warehouse use, such as scratches and wear on the bearing surfaces. If you have questions about the condition of a particular item, give us a call and we will go through the material with you.
Price, collection and accessories
The price is gross, including 19 % German VAT, ex works Kaarst. You are welcome to collect the goods yourself; loading is free of charge. We arrange transport throughout Germany — freight costs depend on quantity and destination and we will quote them on request. Accessories are available at extra cost: floor anchors, rack protection, guard rails, upright protectors and wire mesh decks.
Need a different height, different beam lengths or a layout not shown here? Tell us the quantity you need — we will check what we can put together from our stock.
